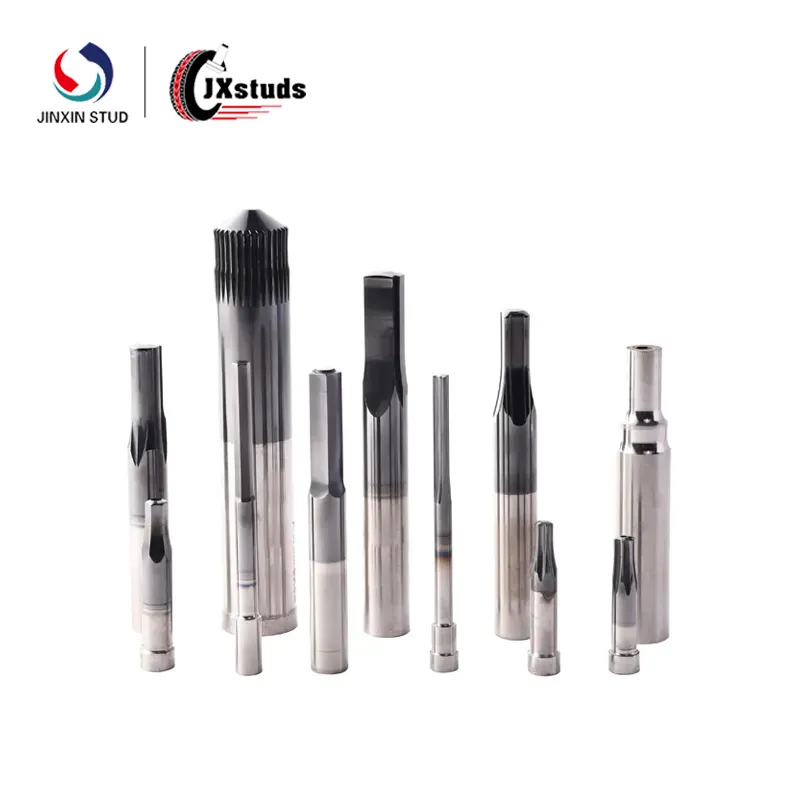

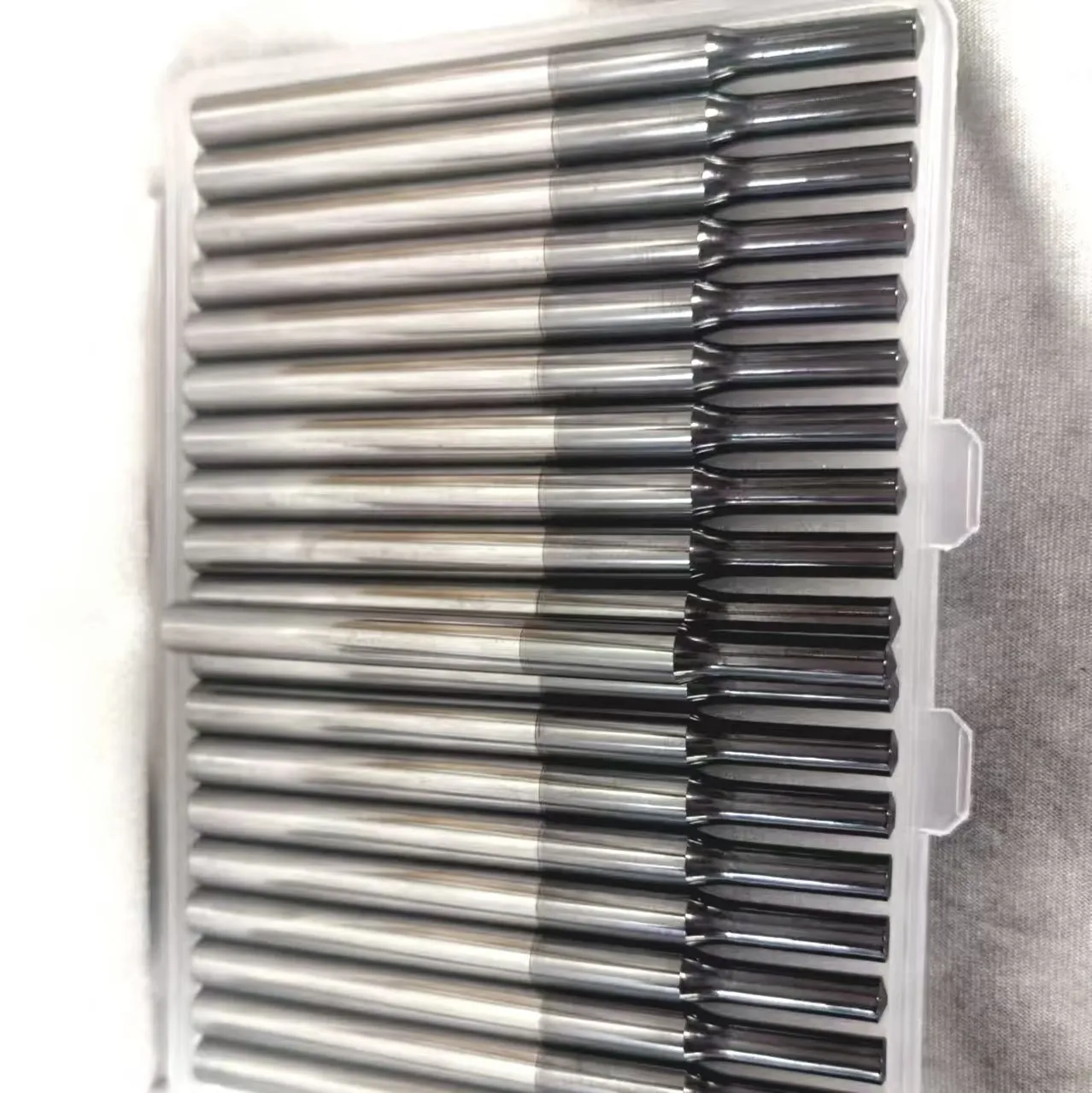

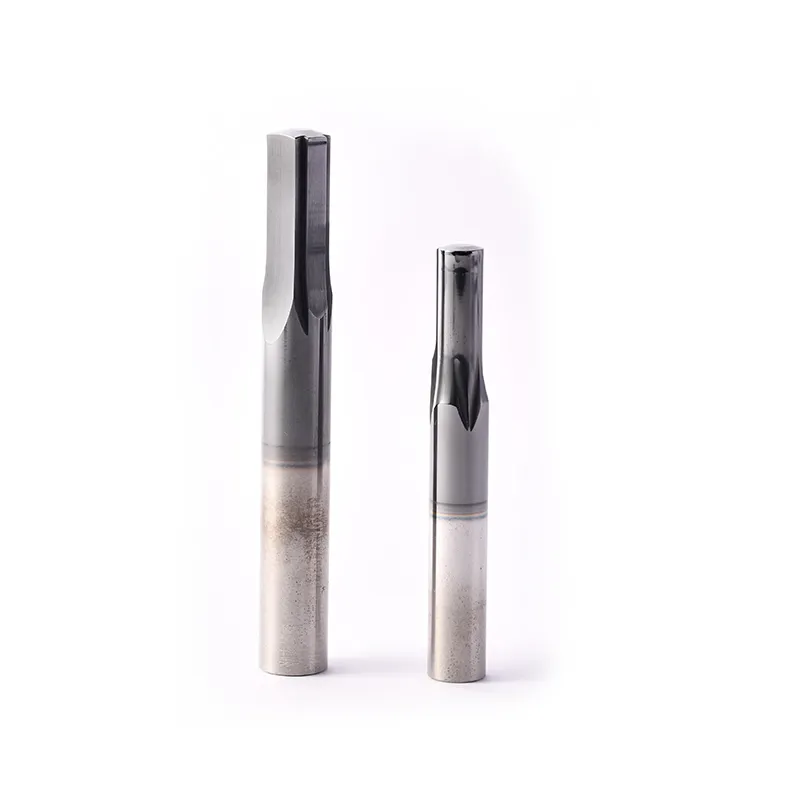

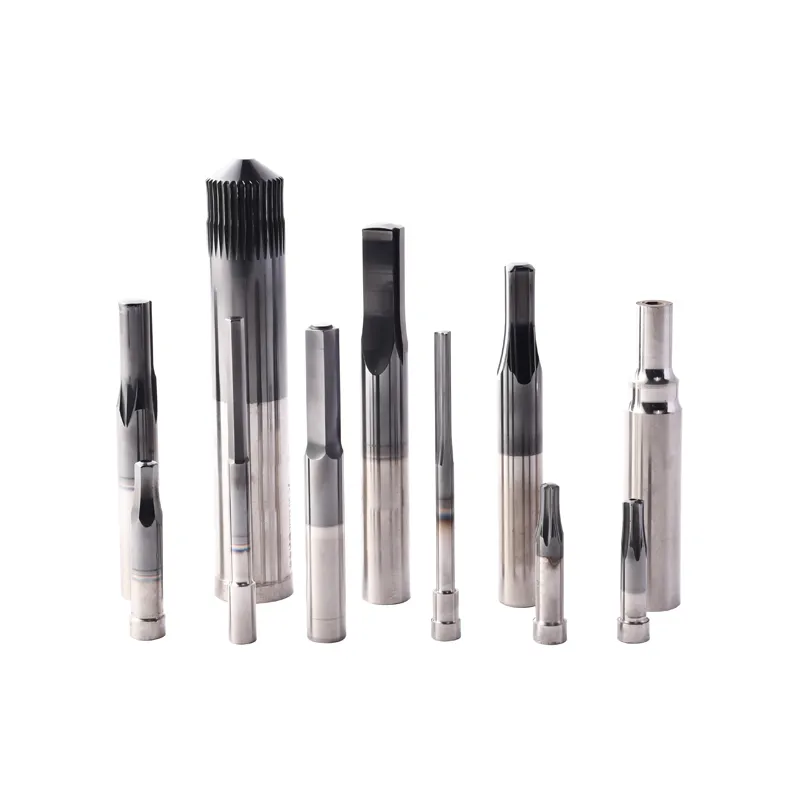

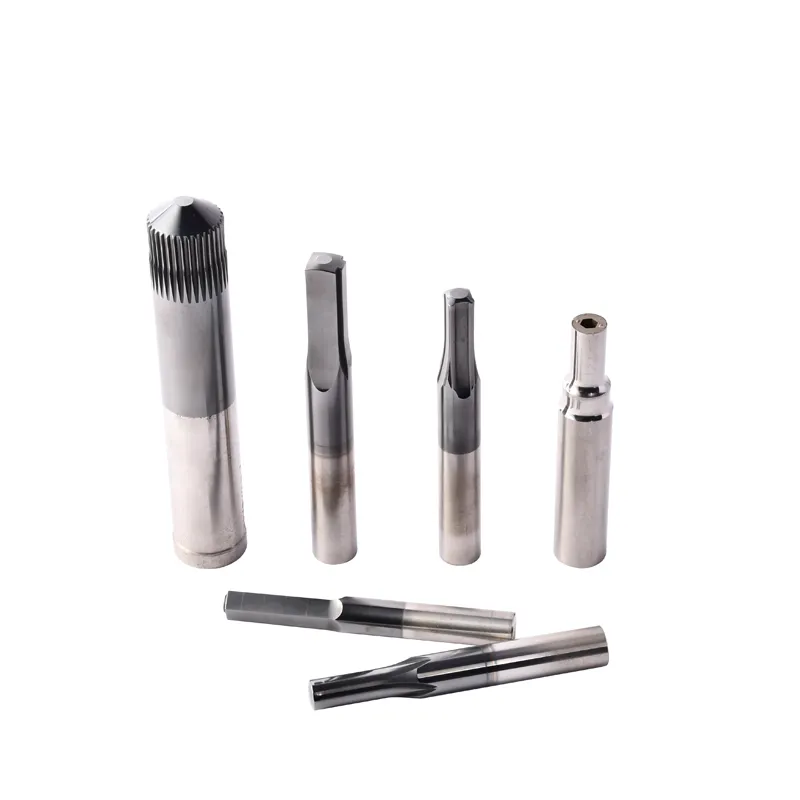

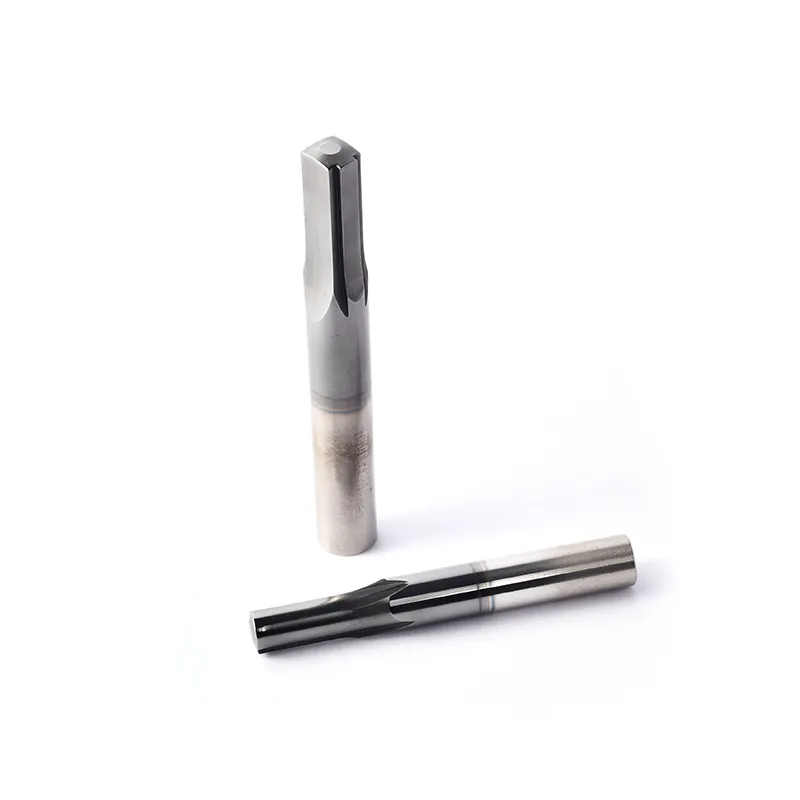

non-standard mold accessories punches punche pin/rod
Hard alloy molds mainly include the following categories
1. Wire drawing molds. This type of mold accounts for a large proportion in hard alloy molds, with main grades including YG8, YG6, YG3, etc
2. Cold heading die and cold stamping die. The main grades include YC20C, YG20, YG15, etc
3. Integral mold. The main grades of this type include CT35, YJT30, and MO15.
4. Non magnetic alloy molds. Mainly used for the production of magnetic materials。Grade such as YSN series YSN (including 20, 25, 30, 35, 40) and steel structure non-magnetic mold grade -TMF
5. Hot work molds. There is currently no standard brand for this type of mold, but market demand is increasing
general impact-resistant forging die
6. punching and shearing molds, as well as in large impact forming and stamping molds
stamping dies such as progressive dies.
7. In addition, there are some special types of molds, such as hexagonal molds, spiral molds and other non-standard molds etc.
Product Paramenters
Grade | ISO | Density | TRS | Harness | Applications |
YG11C | K40 | 14.35 | 2200 | 87.6 | Forming or stamping dies for metal powders and nonmetal powders. |
YG15 | K40 | 14.0 | 2300 | 86.5 | For fabricating drawing dies of steel tubes and rods under high compressibility ratio;punchingstampingforging tools under large stress. |
YG15C | K40 | 14.0 | 2500 | 85 | |
YG18C | K40 | 13.7 | 2700 | 84.5 | Impact resistance forging dies,hot-press forging dies and rollers. |
YG20 | K40 | 13.5 | 2400 | 4 | For various dies made by cold forging,cold stamping and hot forging. |
YG20C | K40 | 13.4 | 2600 | 81-82 | Dies for wear resistant or impact resistant application |
YM3 | K05 | 15.1 | 1400 | 92 | suitable for fnishing of cast iron and nonferrous metal |
YM6X | K10 | 14.95 | 1800 | 91.5 | the finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel |
YM6 | K15 | 14.95 | 1900 | 90.5 | suiable for the roughing of cast iron and light alloys and also for themilling of cast iron and low-alloy steel |
YM8 | K20 | 14.8 | 2200 | 89.5 | |
YW1 | M10 | 13.1 | 1600 | 91.6 | suitable for fnishing and semi-finishing of stainless steel and conventionalalloy steel |
YW2 | M20 | 13 | 1800 | 90.6 | the grade can be used for the semi-finishing of stainless steel andlow-alloy steel and it is mainly used for the machining of railway |
YT15 | P10 | 11.4 | 1600 | 91.5 | suitable for the fnishing and semi-finishing for steel and cast steel witha moderate feed rate and rather high cutting speed |
YT14 | P20 | 11.6 | 1700 | 90.8 | suitable for the fnishing and semi-finishing of steel and cast steel |
YT5 | P30 | 12.9 | 2200 | 90.5 | suitable for the heavy duty rough turning of and cast steel with a bigfeed rate at a medium and low speed under unfavorable workingconditions. |
